Product Overview

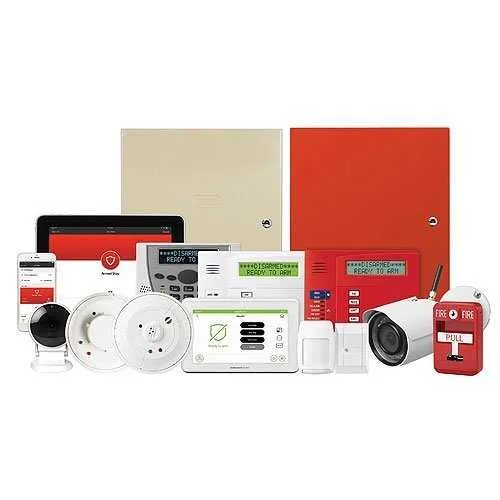

The new VISTA-32FBPT provides the ultimate protection for life and property. This fire and burglary control panel supports up to two partitions and up to 32 zones/points using hardwired, wireless and V-Plex® addressable technologies. A diverse line of Resideo initiating devices, notification appliances, communication devices, keypads, RF receivers and relays satisfy a wide range of installation requirements.
The VISTA-32FBPT control is suitable for fire-only applications, as well as for installations requiring integrated fire/burglary systems. It is the perfect solution for medical and professional office buildings, churches and synagogues, banks, schools, strip malls, and factory or warehouse environments.
VISTA-32FBPT is compatible with a number of AlarmNet® communication products for alarm reporting, uploading/downloading and Total Connect Remote Services.
- Eight hardwired zones standard, expandable to 32 using V-Plex addressable points/zones
- Supports up to 32 wireless zones (fewer if using hardwired and/or V-Plex zones)
- Can control two separate areas independently (2 partitions)
- Common lobby partition - auto arm or disarm based upon assigned partitions
- Master partition - used for viewing status of all partitions
- Supports commercial wireless fire and burglary devices
- Stores up to 512 events
- Accommodates 75 user codes and up to 250 access card holders using VISTAKEY®
- Supports V-Plex addressable VISTAKEY access control (1 to 8 doors)
- Two on-board NACS delivering a total of 2.3A @ 12V
